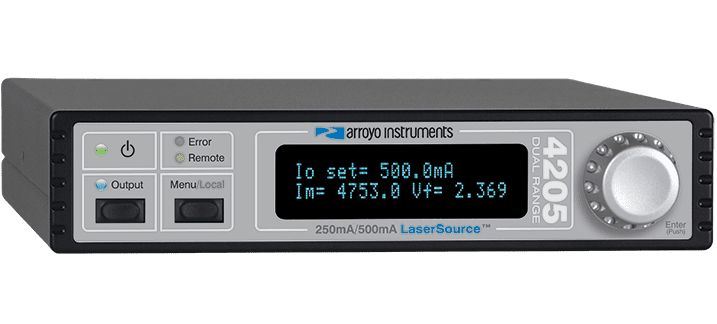

4200-DR Series LaserSource

The 4200 Series LaserSource is a high-accuracy, dual-range laser driver for low-power laser and LED applications. This laser driver offers features typically found in only more expensive units, such as overlapping laser protection systems, high modulation rates, and programmable PD bias.

At-a-Glance

Current Ranges:

  • 50 mA / 100 mA
  • 250 mA / 500 mA
  • 1 Amp / 2 Amp

High Accuracy

  • Up to 0.025% of reading + 0.025% of scale

Low Noise

  • As Low as <1 µA

Compliance Voltages

  • Up to 10 Volts available
ModelCurrentVoltageAccuracyNoiseBWQCW
4205-DR LaserSource, 250mA/500mA500 mA10 V0.025% + 0.12 mA< 1.5 uA325 kHzNo
4201-DR LaserSource, 50mA/100mA100 mA10 V0.025% + 0.03 mA< 1 uA325 kHzNo
4220-DR LaserSource, 1A/2A2 A5 V0.025% + 0.5 mA< 15 uA150 kHzNo

4200 SERIES FEATURES

The 4200-DR Series LaserSource dual range laser diode driver is ideal for low power applications, such as butterfly and TO-can lasers, as well as many LED applications. The compact enclosure takes up little space and starting at only $995, the 4200-DR offers an excellent value.

Many of our customers have switched to the 4300 after years of using other products, and they have all made the same discovery: Why spend significantly more when you can get the same performance for a fraction of the price?

The LaserSource has all the features you would expect from a laser driver, such as safety interlock, ESD protection, and hardware limit circuits for current and voltage. Dual range allows this instrument to operate at half-scale for improved resolution.

DUAL RANGE LASER DRIVER

Operates at half-scale for improved resolution and lower noise.

OVERLAPPING LASER PROTECTION

Including safety interlock, ESD protection, hardware limits for current & voltage, soft power-on, and intermittent contact safeguards.

REMOTE VOLTAGE SENSING

Supports an extra pair of sensing wires to measure the operating voltage of your laser diode or LED.

PROGRAMMABLE PHOTODIODE BIAS VOLTAGE

Menu-selectable PD bias voltage, from 0 to -5 Volts.+P25

ANALOG MODULATION

Bandwidths up to 325 kHz.

MULTIPLE OPERATING MODES

Choose from:

  • Constant Current
  • Constant Power
  • Constant Voltage

SIMPLE USER INTERFACE

Easy to Read, High Contrast VFD Display with all messages and
settings in plain English. View All 3 At Once:

  • Current Set Point
  • Photodiode Current
  • Laser Voltage
