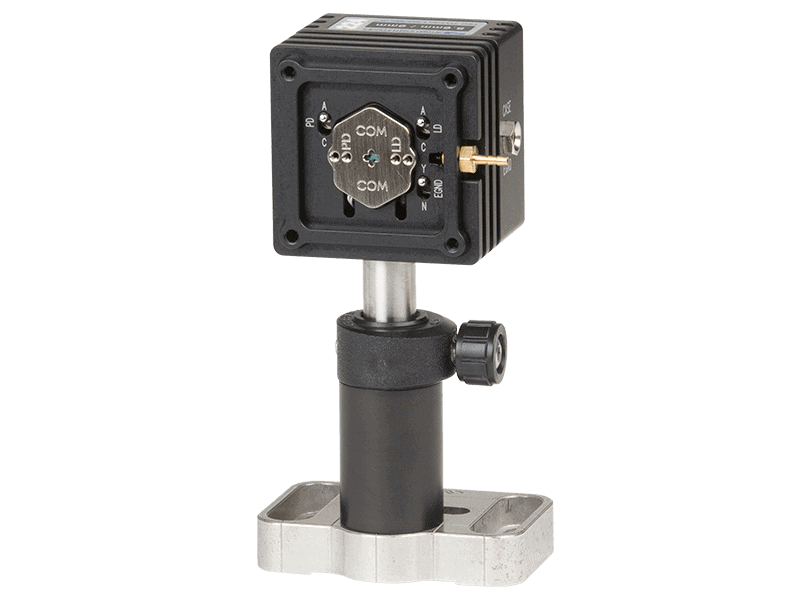

TO-Can LaserMounts

The 224 and 234B TO-Can LaserMounts are full-featured laser fixtures with integrated temperature controls and easy device connections, built for TO-Can laser packages.

At-a-Glance

Supported Laser Packages

  • 5.6 mm TO-Can
  • 9 mm TO-Can
  • 2-pin TO-Can (Model 234B)

Cooling Mode

  • Active Heating & Cooling

Thermal Capacity

  • 1.8 Watts (Model 224)
  • 8 Watts (Model 234B)

Also Includes:

  • Solder-less wiring
  • Integrated Fan (Model 234B)
ModelDeviceTECFeatures
234B TEC TO-Can LaserMountTO-CanYes10W capacity, wide temperature range
234-C-02 Cover, 1-inch Lens Tube InterfaceOpto-mech cover, 30mm cage and 1" lens tube
224-C-01 Standard CoverStandard cover, 30mm cage support
224-C-02 Opto-Mech CoverOpto-mech cover, 30mm cage and 1" lens tube
224-C-03 Fiber Pigtailed CoverCover for fiber pigtailed lasers
224 TEC TO-Can LaserMountTO-CanYesFree-space TO-cans

TO-CAN LASERMOUNT FEATURES

The TO-Can LaserMounts support TO-Can with active cooling, and easy configuration and device connections. The 234B is a more powerful version of the 224 and supports high-power TO-can devices as well as 2-pin devices.

ACTIVE HEATING AND COOLING

Includes a built-in Peltier device and temperature sensor for bi-polar temperature control.

STANDARDIZED CABLE CONNECTORS

Connect to Arroyo Instruments laser drivers and temperature controllers with standard DB-9 and DB-15 cables.

WIRE-FREE CONFIGURATION

Insert the laser device without soldering or wiring. Switches select anode or cathode configuration, and earth ground connection.

CAGE AND LENS TUBE SYSTEMS SUPPORTED

30mm CAGE systems are natively supported, or add an accessory cover for 1″ lens tube supprt.

NITROGEN PURGE

The included 1/16″ barbed nozzle adapts to a nitrogen supply to eliminate condensation around the laser device during low-temperature operation.

COPPER COLD PLATE

100% copper cold-plate with mounting holes for common lasers and LEDs. Hard nickel plating for maximum performance and scratch resistance.
