The 685-0.1 ComboPak offers excellent low current laser performance, making it suitable for very low power applications, such as VCSEL and low power signal diodes. With 2uA set point resolution and less than 5uA of noise, the 685-0.1 provides a transparent driver that won’t interfere with the performance of your laser or LED devices. Couple that with a high-performance TEC controller that supports excellent long-term stability and high resolution.
Develop with a ComboSource, Deploy with a ComboPak
The ComboPak is command-set compatible with the ComboSource and also features the same laser and TEC interfaces. This means you can start your development with the ComboSource, a robust benchtop instrument with a full user interface and display, then move to the lower cost ComboPak as you roll out the application to production or your end-users.
Analog or Computer — Your Choice

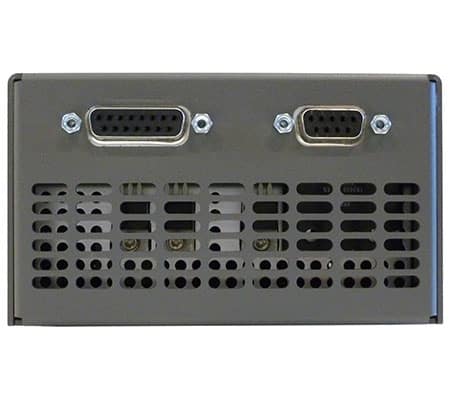

The 685 Series ComboPaks provide both a robust analog interface as well as USB computer control for precise remote operation (you can even use both interfaces simultaneously). The analog interface provides on/off control and status, while the computer interface provides complete control over all operating parameters.
The 685-0.1’s analog interface supports modulation rates up to 150kHz.
Simple Multi-Channel System
Using the 1402C-RM Rack Mount Tray, you can quickly rack groups of 3 or 5 Paks into a rack for a quick multi-channel system.
Universal AC Input
The ComboPak features a universal AC input, eliminating the need to reconfigure the instrument when moving your application internationally.
